NEWSTAR Door Closers Surface Mounting Type 7000series 7002model【Direct from Japan】 [NEWSTAR-7000-7002]

NEWSTAR Door Closers Surface Mounting Type 7000series 7002model【Direct from Japan】 [NEWSTAR-7000-7002]

Please contact us from here for the price.

Item description

NEWSTAR Door Closer Surface Mount Type 7000 Series – Model 7002 【Direct from Japan】

◆ Model

Model Number
With Hold-Open		Applicable Door Dimensions
(DW × DH mm)

         Maximum           Door Weight (kg)

7002900 × 210045

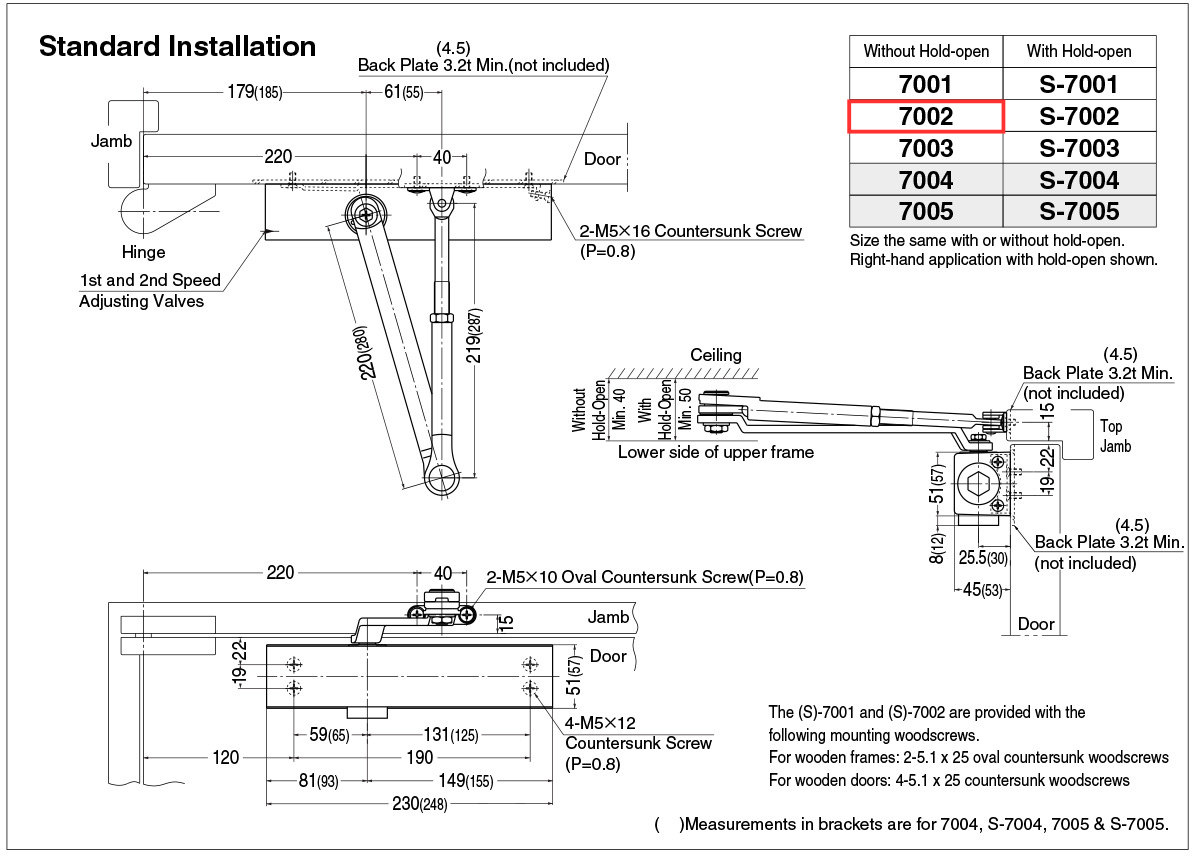

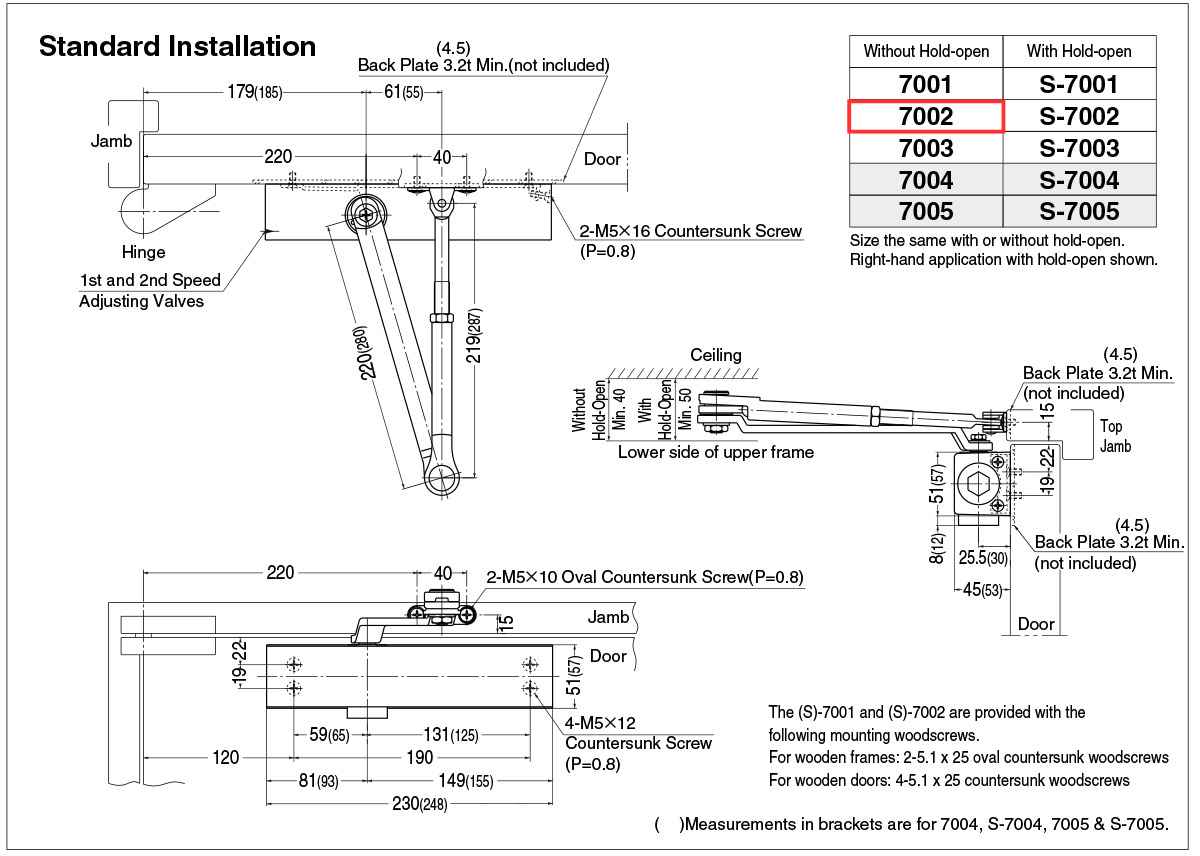

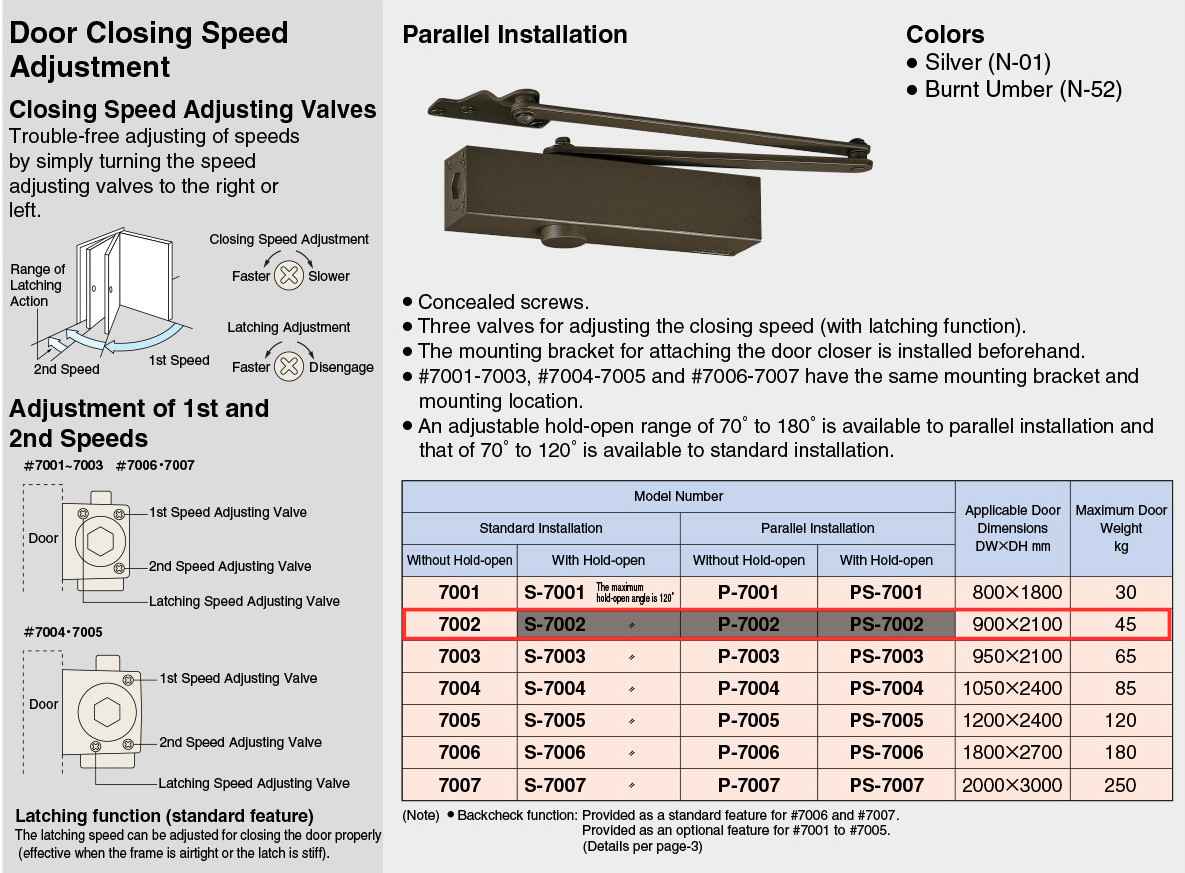

Please refer to the product images for details of each model.
Models other than the 7002 model in the 7000 series are listed on separate pages.

 ※Main image is 7002.
 ※Please note that the actual product color may differ slightly from the photo.
 ※You can see the actual instructions written in Japanese and Englishincluded
    with the product in the image.
 ※Please read the precautions and product details carefully.

◆ Product features

  • Standard type for lightweight steel doors

  • Compact and sleek design

  • Clean appearance with concealed mounting screws

  • Adjustable closing speed with 3-valve system

  • Three-stage control: First speed, Second speed, and Latching

  • Built-in latching function

    • Ensures smooth and secure door closing at the final stage

  • Reversible design for both left- and right-hand doors

    • Can be installed upside down to accommodate door handing

  • Optional features available:

    • Hold-open function

    • Backcheck (BC)

    • Delayed action (DA)

  • Flexible opening angle settings (varies by installation type)



◆ Product features

  • Applicable door size: Width 900mm × Height 2100mm

  • Maximum door weight: 45kg

  • Suitable door material: Steel / Lightweight doors



◆ Colors

  • Silver (N-01)



◆Shipping

  • Price may vary depending on options.
  • It usually takes about 2 or 3 business days to ship an item.
  • It may take a considerable number of days (approximately 1 week or more) .
  • If you are in a hurry, please contact us in advance.
  • If delivery takes longer due to stock-out, etc, we will contact you after you place an order.
  • Please be carefull not to make any mistakes in your address.
  • Shipping is available from Monday to Friday.
