MATSUMURA EXC-5700A U.S.$ COUNTERFEIT BILL BANKNOTE DETECTOR【DIRECT FROM JAPAN】 [EXC-5700A]
Price: 300,000JPY
Item description

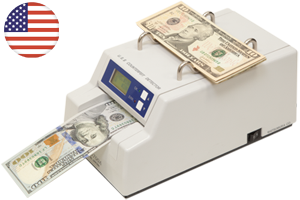

EXC-5700A U.S.$ COUNTERFEIT BILL DETECTOR

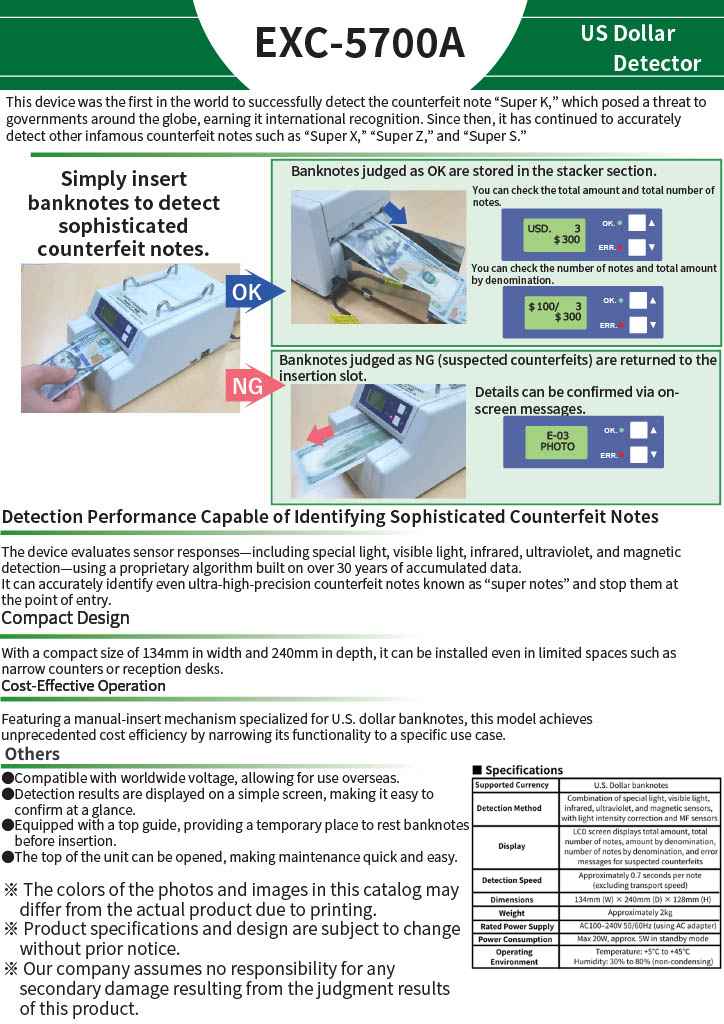

US Dollar Bill Validator EXC-5700A is a device designed specifically for verifying US dollar bills. Recently, highly accurate counterfeit bills, indistinguishable by the naked eye, have increasingly been discovered.The EXC-5700A is equipped with Matsumura’s globally recognized proprietary authentication algorithm,enabling it to detect even the most precise counterfeit notes that cannot be identified visually.This validator is particularly suited for establishments handling smaller volumes of foreign currency, offering exceptional cost-effectiveness.
※The criteria for determining whether or not a bill is counterfeit are in accordance with the manufacturer's standards.
◆ Product features
<Premium Counterfeit Detection Capabilities>
The machine employs a unique authentication algorithm developed by Matsumura,analyzing data gathered through specialized sensors using special light,
visible light, ultraviolet, infrared, and magnetic field (MF) detection methods. This advanced approach ensures superior accuracy and reliability unmatched by competitors.

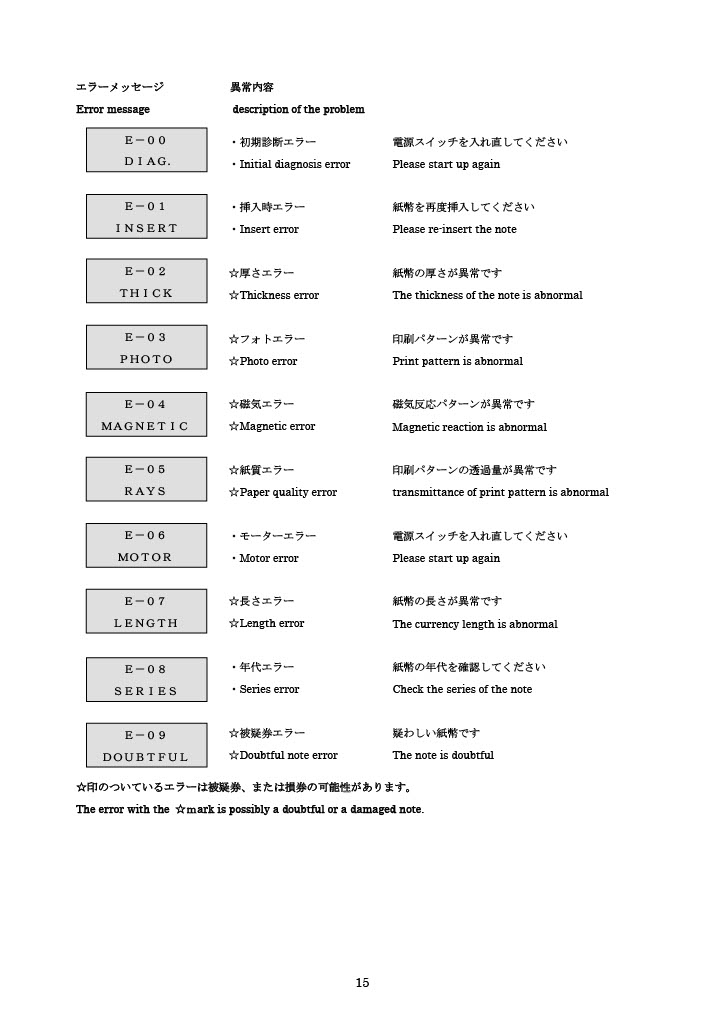

If a bill is identified as suspicious or counterfeit, the machine promptly alerts the user with an audible buzzer and an error message displayed on the LCD.
<Compact Design for Limited Space>

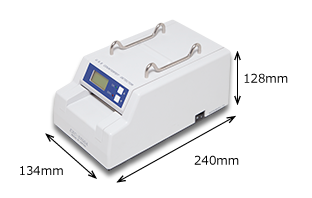

The EXC-5700A is compactly designed, measuring only 134mm (width) × 240mm (depth) × 128mm (height), making it ideal for small spaces such as counters or desks.<Display of Total Count and Amount by Denomination>

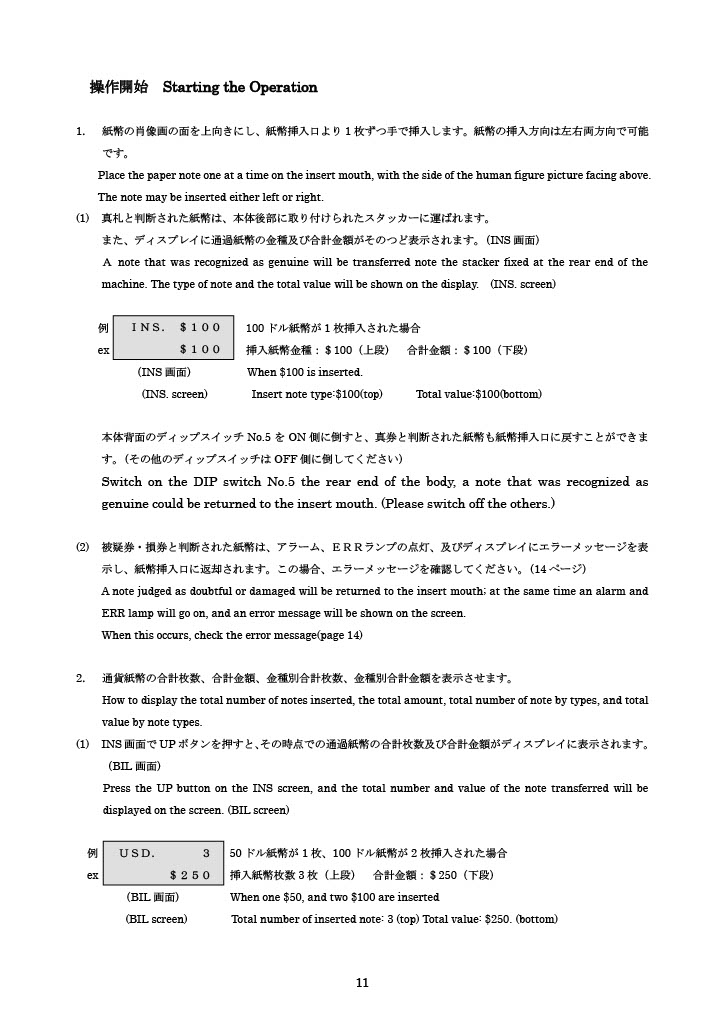

Validated genuine bills are counted and displayed on the LCD screen, showing both total quantity and total monetary value.

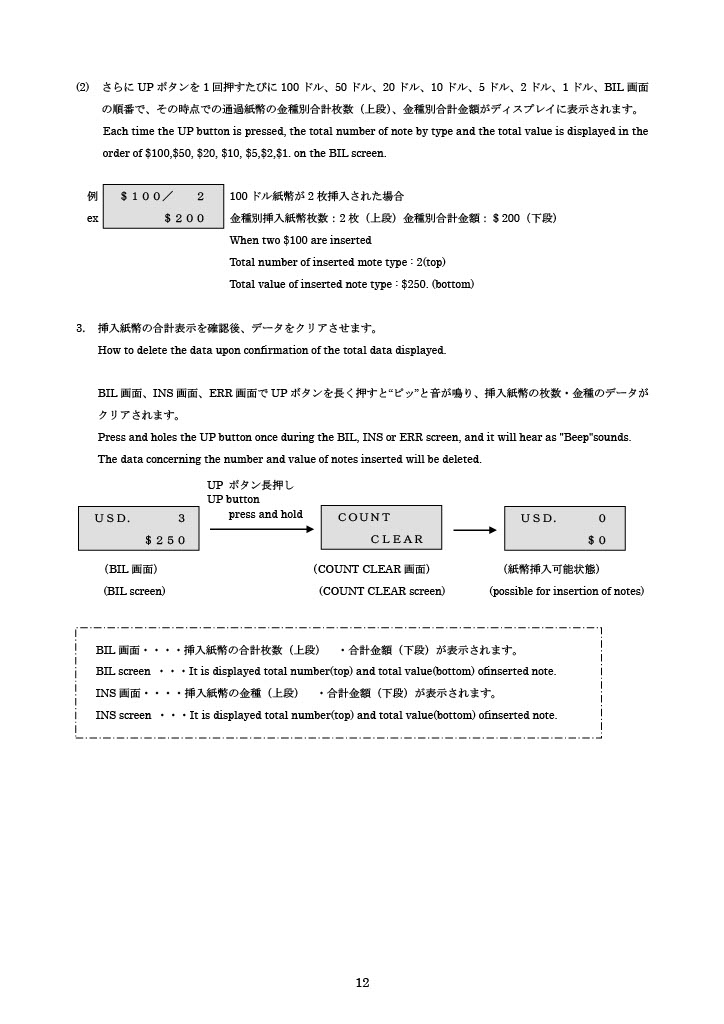

Through a simple switch operation, users can also view detailed breakdowns by denomination, including the total count and amount per denomination.

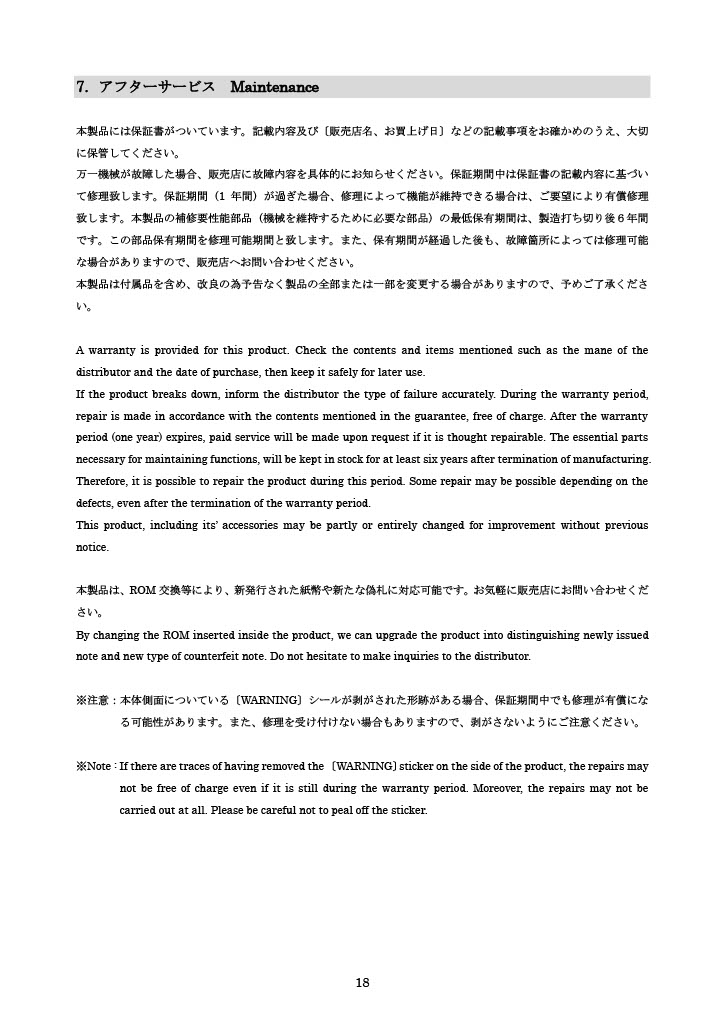

<Upgrade Capability>
The machine can be upgraded to handle newly issued banknotes or newly discovered counterfeit bills through version updates.
(Please note that version updates incur an additional fee.)
<Additional Features>
●World wide power compatibility (AC85V-264V)
●Validation speed : Approximately 0.7 seconds per bill
<Suitable for Various Establishments>
●Financial institutions, Foreign currency exchange offices, Stores handing foreign currencies, Hotels, Accomodation facilities

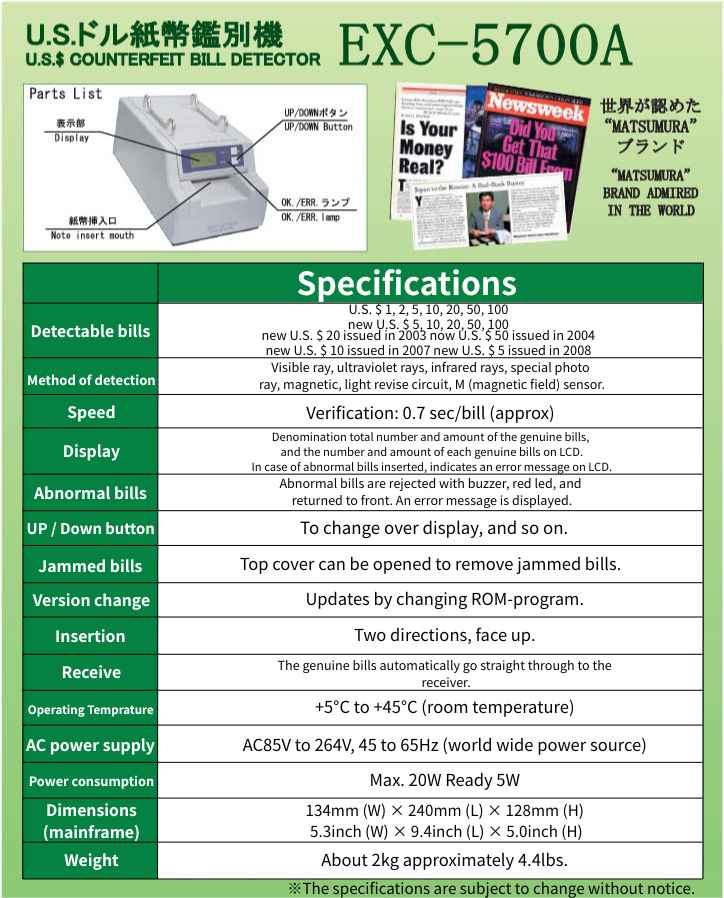

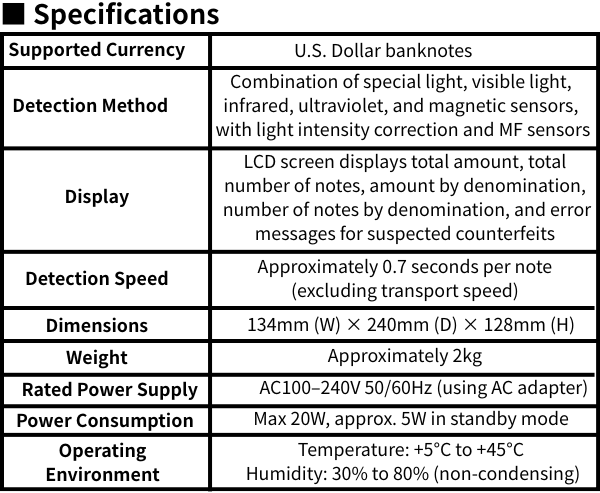

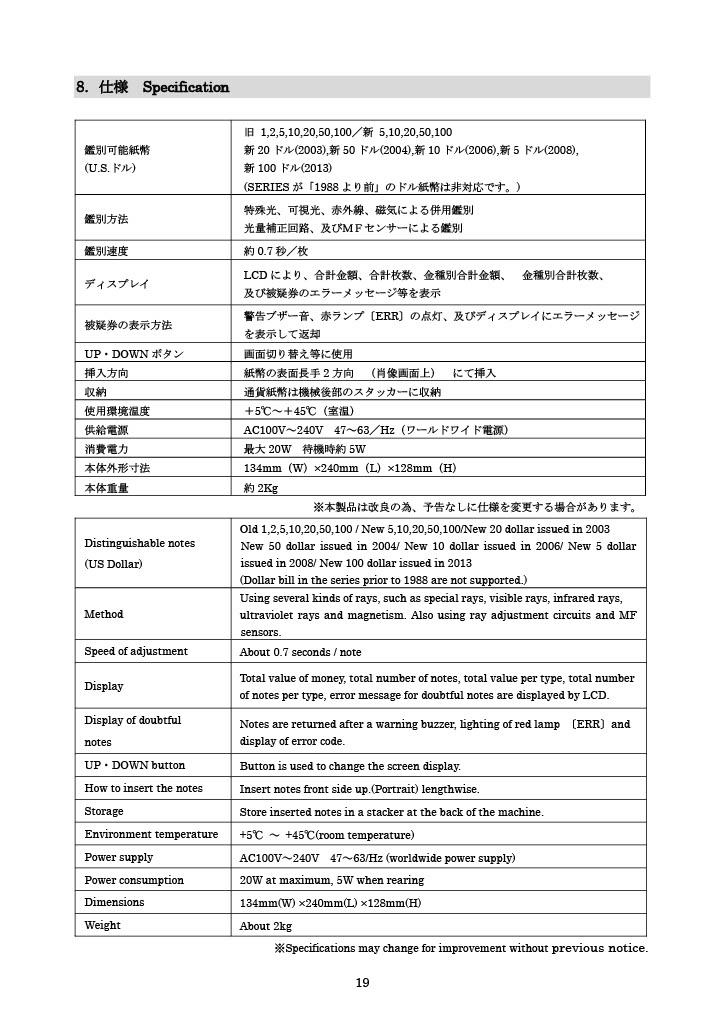

◆ Specifications
| Currency Supported | US Dollar (USD) |
| Detection Method | ●Combined authentication using special light, visible light, infrared, and magnetic detection ●Authentication through illumination correction circuit and MF sensor |
| Detection Speed | ●Approximately 0.7 seconds per bill |
| Display | ●LCD shows total amount, total number of bills, total amount per denomination, total number of bills per denomination, and error messages for suspect bills |
| Suspect Bill Notification | Audible warning buzzer, red [ERR] lamp illumination, and LCD error message display |
| UP / DOWN Buttons | Used for screen navigation and switching display modes |
| Insertion Direction | Insert bills lengthwise, face-up with portrait oriented correnctly (two directions) |
| Storage | Validated bills are collected in a stacker located at the rear of the device |
| Operating environment | ●Temperature : +5℃ to + 45℃ (room temperature) ●Humidity: 30% to 80% Rh (non-condensing) |
| Power Supply | AC85V to 264V 45-65/Hz (Worldwide compatible power supply) |
| Power Consumption | Maximum : 20W, Standby : approx. 5W |
| Dimensions | 134mm (W) x 240mm (L) x 128mm (H) (excluding protrusions) |
| Weight | Approx. 2 kg (excluding AC adapter) |
※ This product`s authenticity detection results do not guarantee the value of the examined currency.
The manufacturer is not responsible for any damages resulting from the evaluation results.
※ Product specifications may change without prior notice for improvement purposes.
